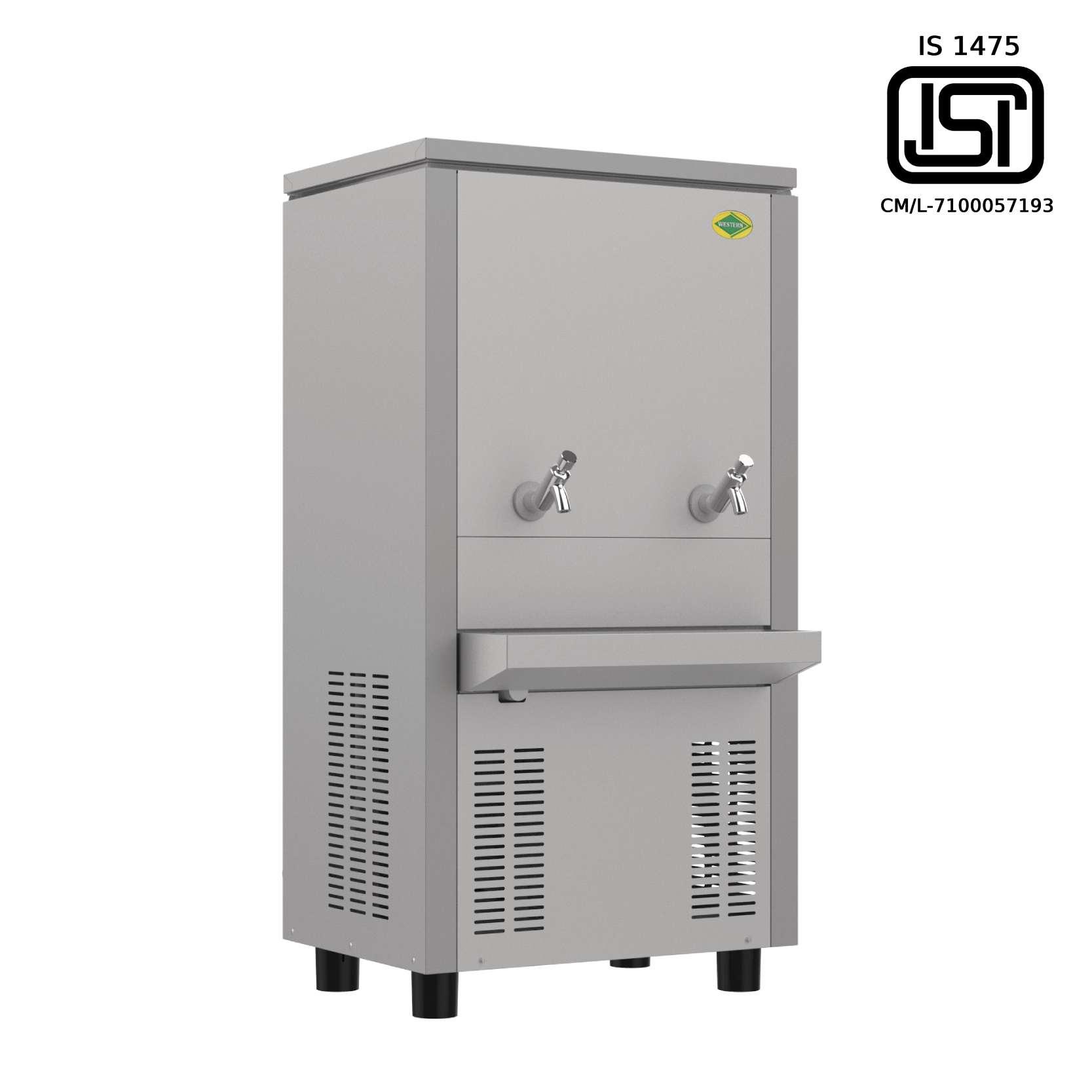

40L – Stainless Steel Water Cooler
Specifications
Water Storage Capacity: 40 Litres
Cooling Capacity: 20 Litres/Hour
Refrigerant: R-290 (Propane)
Power Supply: 230V AC / 50 Hz / Single Phase
Dimensions & Weight
Dimensions: 670 x 676 x 1204 mm
Net Weight: 46 Kg
Gross Weight: 52 Kg
Features
SS 304 Inner Tank with Passivation
PUF Insulation (HFC Free)
Mechanical Thermostat
Push Cock Faucets (2 Nos.)
80L – Stainless Steel Water Cooler
Specifications
Water Storage Capacity: 80 Litres
Cooling Capacity: 40 Litres/Hour
Refrigerant: R-134a
Power Supply: 230V AC / 50 Hz / Single Phase
Dimensions & Weight
Dimensions: 700 x 821 x 1204 mm
Net Weight: 60 Kg
Gross Weight: 66 Kg
Features
SS 304 Inner Tank with Passivation
PUF Insulation (HFC Free)
Mechanical Thermostat
Push Cock Faucets (2 Nos.)
150L – Stainless Steel Water Cooler
Specifications
Water Storage Capacity: 150 Litres
Cooling Capacity: 120 Litres/Hour
Refrigerant: R-134a
Power Supply: 230V AC / 50 Hz / Single Phase
Dimensions & Weight
Dimensions: Data not specified
Weight: Data not specified
Features
SS 304 Inner Tank with Passivation
PUF Insulation (HFC Free)
Mechanical Thermostat
Push Cock Faucets (3 Nos.)
Frequently Asked Question (FAQ) Water Coolers
What are the storage and hourly cooling capacities of the 40L, 80L, and 150L water coolers?
-
40L Model: Features a 40-Litre storage capacity and cools up to 20 Litres per hour.
-
80L Model: Features an 80-Litre storage capacity and cools up to 40 Litres per hour.
-
150L Model: Designed for high-volume demands, it features a 150-Litre storage capacity and cools an impressive 120 Litres per hour.
How many faucets are provided on each water cooler model?
-
The 40L and 80L models are equipped with 2 heavy-duty Push Cock faucets.
-
The high-capacity 150L model comes with 3 heavy-duty Push Cock faucets to prevent queues and speed up dispensing in busy areas.
What premium materials and insulation are used to construct these units?
Every unit in this range is built with high-quality, long-lasting materials:
-
SS 304 Inner Tank with Passivation: The inner water storage tank is made from food-grade Stainless Steel 304 treated with a passivation process to ensure maximum corrosion resistance, hygiene, and clean drinking water.
-
PUF Insulation (HFC-Free): Eco-friendly, high-density Polyurethane Foam insulation keeps the water chilled for extended periods, reducing compressor run-time and saving energy.
What are the dimensions and weights of the 40L and 80L water coolers?
-
40L Water Cooler: Dimensions are 670 x 676 x 1204 mm, with a net weight of 46 Kg (Gross weight: 52 Kg).
-
80L Water Cooler: Dimensions are 700 x 821 x 1204 mm, with a net weight of 60 Kg (Gross weight: 66 Kg). (Note: Dimensions and weight for the 150L model are customized per configuration or not specified).
What kind of refrigerants do these commercial water coolers use?
These coolers use highly efficient refrigerants tailored to their cooling performance requirements:
-
The 40L variant uses eco-friendly R-290 (Propane) refrigerant.
-
The 80L and 150L variants utilize industry-standard R-134a refrigerant.
What are the electrical power supply requirements for installation?
All three models (40L, 80L, and 150L) run on standard commercial single-phase power setups. They require a standard 230V AC / 50 Hz / Single Phase power supply, making installation simple across standard office, factory, or commercial outlets.
Can I manually control the cooling temperature?
Yes. Every model is fitted with a reliable Mechanical Thermostat. This allows maintenance teams or operators to manually adjust and maintain the desired water temperature easily based on weather changes or usage volume.
